BPE PowerDepot H5 Battery

BPE’s energy storage solutions utilise LiFePO4 battery technology

BPE PowerDepot H5 Battery

H5 Battery adopts LiFePO4 battery technology with exceptional safety, performance and durability offering you more capacities to meet your requirements.

Lithium Iron Phosphate (LiFePO4) batteries are fully protected by a sophisticated Lithium Battery Management System (BMS) that constantly monitors every cell to ensure the battery is always optimised for the best performance. BPE PowerDepot batteries are the safest Lithium battery type available on the market which are also specifically engineered to deliver a long cycle life.

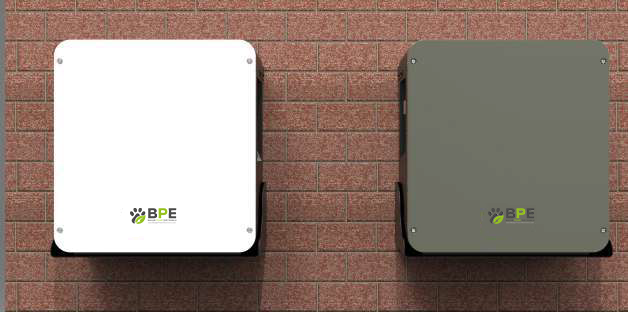

BPE H5 on wall

Main Features

  • Safest Lithium-ion battery technology on the market
  • High power output and usable energy ratio
  • Compact size
  • Modular design and expandable up to 28.8kWh
  • IP65 rated for indoor/outdoor installation
  • Easy installation – wall or floor mounted
  • Integrated DC breaker
  • Natural cooling
  • 10 Year/6000 Cycle warranty
  • CE Certified

Learn more about the benefits of LiFePO4 batteries here

H5 Battery Specification

BPE PowerDepot H5 White

BPE PowerDepot H5 Battery – White

BPE PowerDepot H5 Midnight Green

BPE PowerDepot H5 Battery – Midnight Green

Power Characteristics

Battery Capacity @ 1C: 100Ah
Nominal Battery Energy: 4.8kWh
Max. Output Power: 4.8kW
Peak Output Current: 200A, 1s

Power Characteristics

Battery Capacity @ 1C: 100Ah
Nominal Battery Energy: 4.8kWh
Max. Output Power: 4.8kW
Peak Output Current: 200A, 1s

Physical Characteristics

Net Weight: 61kg
Dimensions (WxHxD): 599 x 555 x 210 mm

Charging/Discharging Parameters

Nominal Discharging Current: 50A
Max. Discharging Current: 100A
Nominal Charging Current: 50A
Max. Charging Current: 80A

Battery Voltage

Working Voltage: 40.5V – 54V
Nominal Voltage: 48V

Number of Batteries in Parallel

Scalability: 14.4kWh

Warranty Parameters

Life Cycles (0.5C @ 25°C): 6000 Cycles
Warranty: 10 Years
Operating Temperatures: -20°C – +50°C

Certificates and Compatibility

Certification & Safety Standards: TUV, CE, EN62619, UN38.3, CEC
Compatible Inverter Brands: BPE, Goodwe, Victron, Imeon, Solis, Luxpower, Growatt, GDME, Sofar & Voltronic. (More brands to be announced soon)

Features

Ingress Protection: IP65
Communication: CAN, RS485, Dry Contact
Colour: White or Midnight Green
Monitoring: Integrated BMS
Protection: Integrated DC Breaker
