HYBRID PV & WIND INVERTER

Hybrid PV & Wind Inverter from BPE combines Solar, Wind, Battery and Back Up Generator power together with software which can be programmed to determine the most efficient use of your available energy. The AC power output can be precisely regulated by controlling the current and rotor speed through the 12-point power curve settings. This makes it possible for the system to be constantly controlled for optimum speed, thus ensuring maximum performance. The range includes power classes of 3.6kW, 5kW, 8kW (Single Phase) and 12kW (Three Phase).

As technology costs come down, combining wind, solar PV and energy storage with a hybrid inverter is the most efficient and cost effective way to integrate renewables; harnessing the power of the wind at night and solar during the day optimises your power production.

BPE Hybrid Inverter 3.6kW & 5kW

BPE 3.6kW/5kW Hybrid Inverter

HYBRID PV INVERTER TECHNICAL FEATURES

Multiple Operating Modes

Battery only, Hybrid, On-Grid or Off-Grid

Simultaneously manages power to/from Solar, Wind, Battery, Grid, Load and Back-Up Generator (auto gen start)

Programmable multiple operation modes: On-Grid, Off-Grid and UPS/EPS

Time of Use – 6 programmable time settings enabling you to use grid power more efficiently to charge the battery if you have cheaper electricity in the evening

12 Point Power Curve setting for wind (optional)

Excess Load Feature

Automatically diverts excess power to an immersion heater, air conditioning unit, EV Charger (or any appliance) directly from the hybrid inverter based on PV and/or wind generation and battery state of charge saving money on not installing a separate immersion heater controller

BMS

Compatible with BPE, LG, BYD, SolaX (LV) and Pylontech battery systems

RS485 or CAN bus Communication

Programmable supply priority for battery or grid

Smart battery charger for optimised battery performance

BPE 8kW Hybrid Inverter

BPE 8kW Hybrid Inverter

Protection

PV rapid shutdown control, PV input lightning protection, Overload/Over Temperature/ Short Circuit Protection

Multiple Monitoring Modes

Wifi, GSM, LAN and built-in 2 strings of MPP trackers. Remote monitoring and control of devices with real time energy flows, charts, analysis and personalised settings

Colour Touchscreen Display

Large LCD touchscreen interface

Configurable AC/Solar battery charging  priority via LCD display

Configurable battery charging current and voltage based on applications via LCD display

Peak Shaving

Six peak valley time settings with programmable maximum power output, allows users to use grid power more efficiently and save money

AC Coupling

Upgrade existing solar PV grid tied system to a hybrid system by AC Coupling string/microinverter AC power

BPE Hybrid PV & Wind Inverter Diagram

BPE Hybrid Integration Diagram with Wind Inverter

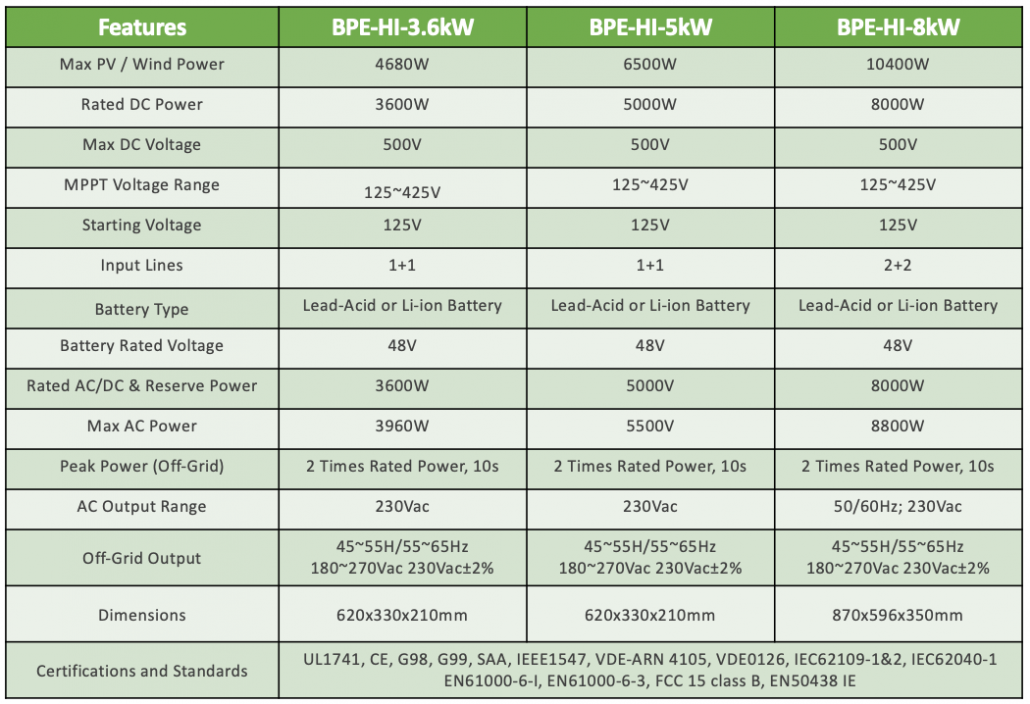

BPE Hybrid PV & Wind Inverter Technical Specifications

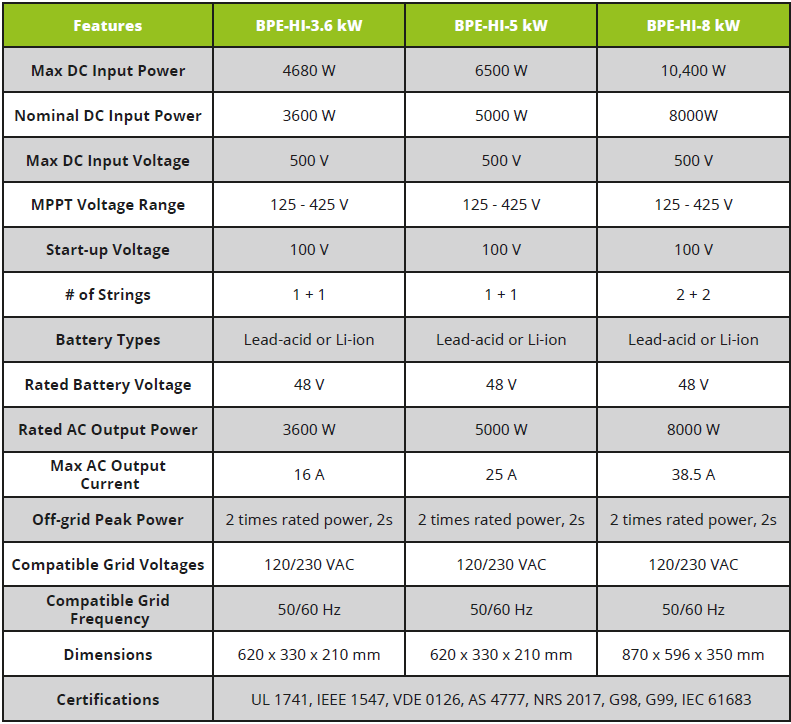

BPE Hybrid Inverter 3.6kW & 5kW Specification table
