Microinverter Accessories

Microinverter accessories designed by BPE aim to make installations easier and quicker. Whether it’s DC extension cables, MC4 sealant caps if you’re using an odd number of panels, we’ve got you covered.

BPE Remote Shutdown Device

G98 Remote Shutdown Device

The BPE Remote Shutdown Device’s communication gateway collects and delivers performance data in real time. With built-in programmable digital input, the device is able to control the microinverter connected to shutdown immediately when the digital input status is changed, a compliance requirement for UK G98.

Power Supply

AC Power Supply: 100 to 240V AC, 50/60 Hz
Power Consumption: 5W typical, 10W maximum
Dimensions (W x D x H in mm): 119.2 x 101.5 x 36
Weight: 0.45kg

User Friendly

LCD display
Easy operation
Compact design
Lightweight

Features

Grid Type: Single phase/Three phase
Digital Input: Programmable
Compliance: IEC60950, IEC61000-6-2, FCC Part15 Class B/Class C, UK G98

Communication

Communication Method: Zigbee, PLC
Max. Number of Connected Inverters: 32
Router Communication: Wi-Fi
Wi-Fi Security: WEP, WPA2-PSK
RS485: Reserved
Max, Distance: 200 m for Zigbee

Mechanical Data

Operation Temperature Range:            -20°C – +50°C
Mounting Method: Wall-mounted
Display: OLED and LED connectors

Safe

Supports rapid remote shutdown
Robust design

BPE MICROINVERTER ACCESSORIES

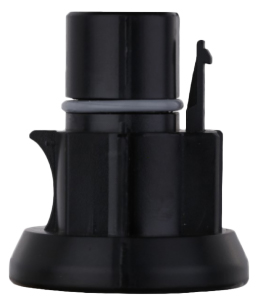

Microinverter Female End Cap

Microinverter Female End Cap

BPE-MI-ECAP-F

IP67 rated end cap to seal the AC female connector of the microinverter.

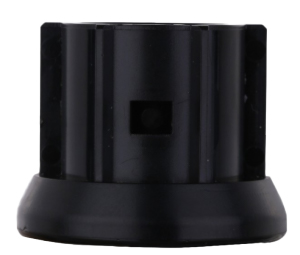

Microinverter Male End Cap

Microinverter Male End Cap

BPE-MI-ECAP-M

IP67 rated end cap to seal the AC male connector of the Microinverter.

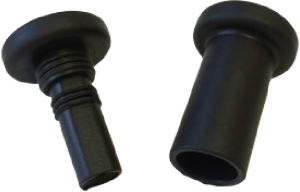

Microinverter MC4 Sealant Cap

Microinverter MC4 Sealant Caps

BPE-MI-DC-CAP

Rubber sealant caps for un-used MC4 connections (pair) for when using an odd number of panels.

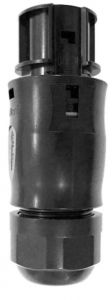

Microinverter Female Connector

Microinverter Female Connector

BPE-MI-CX-F

AC female connector to make AC end or extension cable. IP67 rated.

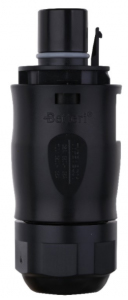

Microinverter Male Connector

Microinverter Male Connector

BPE-MI-CX-M

AC male connector to make AC end or extension cable. IP67 rated.

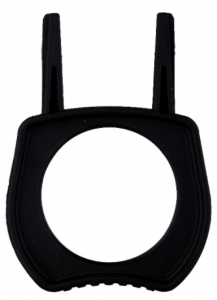

Microinverter AC Unlock Tool

AC Unlock Tool

BPE-MI-AC-Unlock

Used to unlock AC connectors.

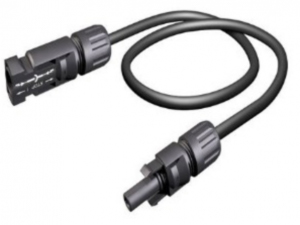

MC4 DC Extension Cable

MC4 DC Extension Cable

BPE-CWT-2/3/5/10

With a male MC4 connector on one end and a female connector on the other end, these interconnecting cables are used to extend PV solar panel output cables.

Available in 2/3/5/10 metres.
